Rolling Mill Circular Shear Blades

2pcs
MOQ
Rolling Mill Circular Shear Blades
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Rotary Slitting Knives
Other Name: Slitter Blade, Coil Slitter Blade, Rotary Shear Blade
Material: SKD11,D2, M2, HSS, TCT
Thickness Tolerance: +-0.001mm
Inner Diameter: +0.02mm
Flatness: ≤0.002mm
Parallelism: ≤0.002mm
Concentricity: ≤0.02mm
Surface Roundness: Ra0.1um
Hardness: TCT: HRA 89~93, Tool Steel: HRC53~65
Application: Steel Processing Plant
Highlight:

circle blade knife

,

circle shear blades

,

Circular Metal Shear Blade

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Model Number: SD004
Payment & Shipping Terms
Packaging Details: anti-rust oil in plastic bag and Packed in strong plywood case
Delivery Time: 35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

rolling mill circular shear blades for copper coil processing



Senda circular shear blades for metal coil processing are mainly applied to slitter machine. Our circular slitter blades or rotary metal slitting blades are designed and manufactured to withstand the heavy-duty application of various grades of material that require heavy shearing force to be processed.





Brand Senda
Country of Origin China
Material  M2, HSS, D2, SKD11 etc
Size: Customized
Thickness tolerance +- 0.001mm
Inner Diameter +0.02mm
Flatness ≤0.002mm
Parallelism ≤0.002mm
Concentricity ≤0.02mm
Surface roundness Ra 0.1um
Hardness HRC62~~65
Packaging wooden box with anti-rust film inside
Application steel processing plant


Application of the circular shear blades for copper coil processing:

1. Normally for hot rolling: 1~12.7mm cstainless steel plates sheet,arbon steel coils etc.

2. Normally for cold rolling: 0.02~3.2mm stainless steel plates, carbon steel plates, galvanized plates etc.

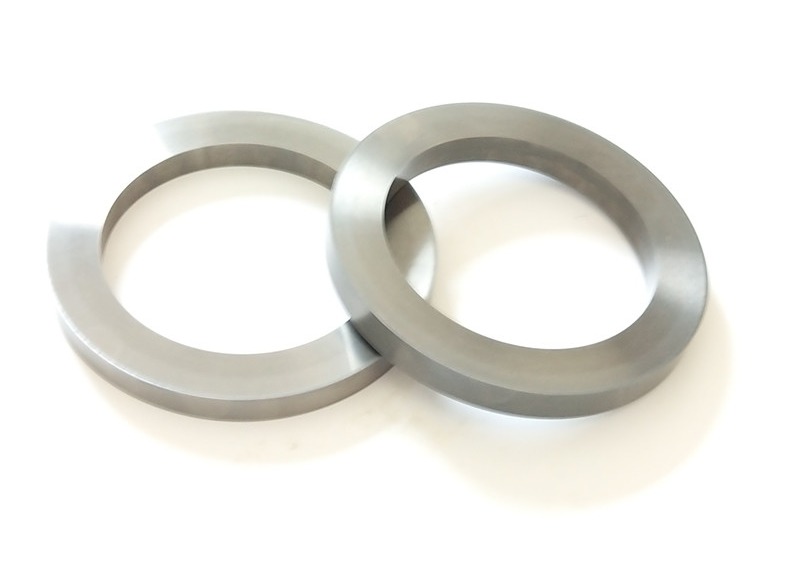

Rolling Mill Circular Shear Blades 0

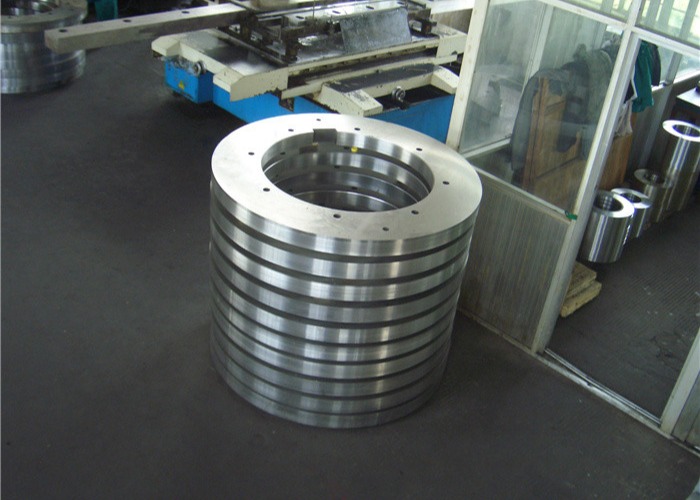

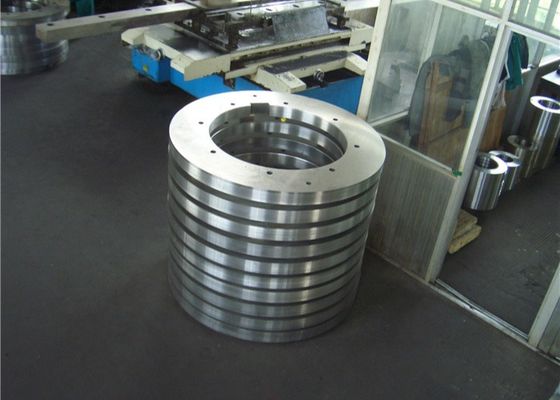

Rolling Mill Circular Shear Blades 1





You may also need below items:

Rotary blades
Plastic spacers

Straight Blades
Scrap Chopping Knives
Separator Discs
Clamping nuts with grease

Rubber rings
Metal distance rings





Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
