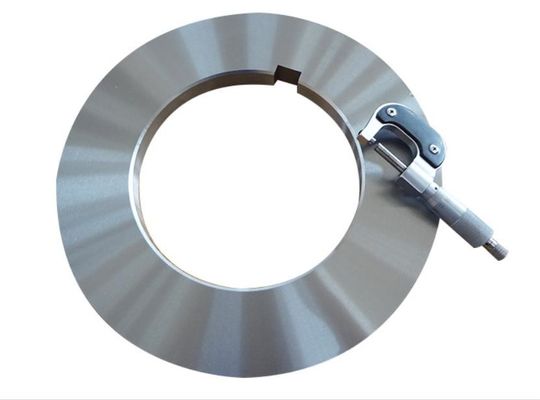

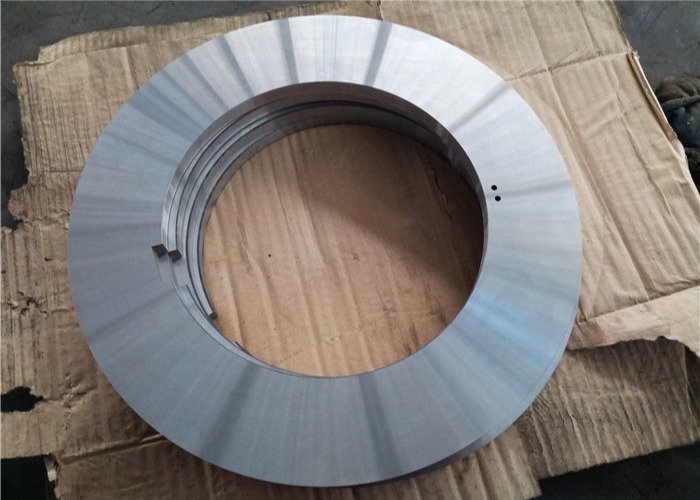

carbon steel slitter machine rolling shear blades for tinplate coating line
Senda rolling shear blades for tinplate coating line used with flying shear blade for cutting hot rolling coid. cold milling coil etc. Circular knives, also called round knives & Rotary Slitter Knives are characterized by their mostly circular shape with corresponding diameter Ø. Their cutting geometries are either flat, slotted or toothed cutting edge. The cutting motion is mostly rotating or stationary. They are used in all sectors of cutting, shredding, scraping, punching, sectioning, perforating, severing, skimming and finishing.
Brand: Senda
Country of Origin: China
Material: SKD11,D2, M2, K110
Size: Customized
Thickness tolerance: +- 0.001mm
Inner Diameter: + 0.02mm
Flatness: ≤ 0.002mm
Parallelism: ≤ 0.002mm
Concentricity: ≤ 0.02mm
Surface roundness : Ra 0.1um
Hardness: Tool steel: HRC56~~58
Packaging: wooden box with anti-rust film inside
Application: electrolytic tinplate coating lines
Application of the rolling shear blades for tinplate coating line:
1. for hot rolling mills: 1~12.7mm carbon steel coils and plates
2. for cold rolling mills: 0.02 ~3.2mm carbon steel plates and plates
Steel choosing→Blanking →Forging Steel →Rough Processing →Heat treatment →Finishing→Testing
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
