Coil Slitting Lightweight Slitter Spacers GCr15

2pcs
MOQ
Coil Slitting Lightweight Slitter Spacers GCr15
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Separator Discs For Metal Processing
Other Name: Overarm Discs, Light Weight Spacer
Material: GCr15, SUJ2, ASTM52100
Thickness Tolerance: +-0.001
Surface Roundness: Ra0.1um
Parallelism: ≤0.002
Flatness: ≤0.002
Application: Combine With Other Slitting Line Tools
Highlight:

Coil Slitting Lightweight Spacers

,

Lightweight Slitter Spacers

,

GCr15 Slitter Spacers

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: anti-rust oil in plastic bag and Packed in strong plywood case
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

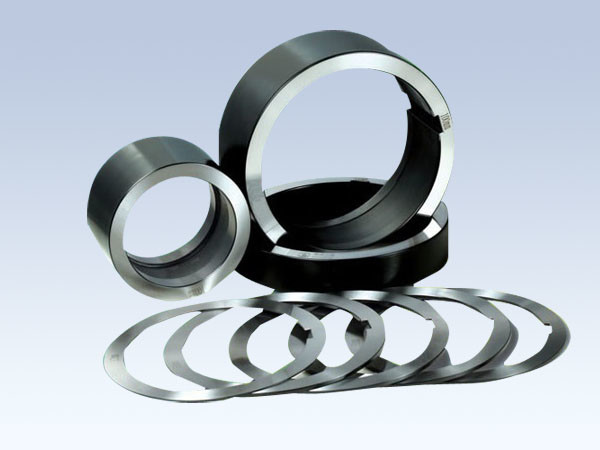

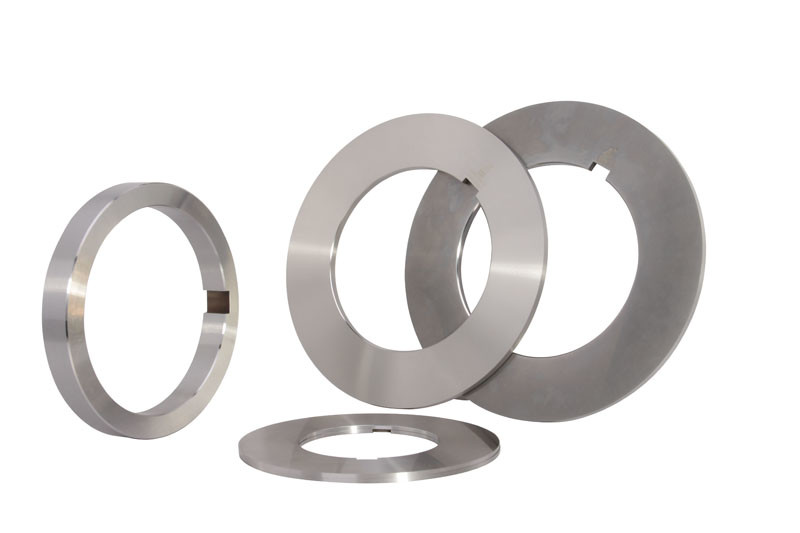

Senda Slitting metal Spacers and lightweight spacers are mainly applied to slitter machines. Together with blades to maintain the certain gaps between each blade. The precision and hardness are essential to spacers for the adjustment of slitter blade.



Brand Senda
Country of Origin China
Material GCr15, SUJ2, ASTM52100
Thickness +- 0.001
Diameter tolerance +0.02
Flatness ≤0.002
Parallelism ≤0.002
Hardness HRC 57-59
Surface roundness Ra 0.1um
Application combine with other slitting line tools etc







Advantage:

Liquid nitrogen -196degree cold treatment ensure the toughness and hardness for each blade.






Application of the Spacers and lightweight spacers:

  1. Spacer for slitter machines for the rotary slitter blades. the commonly used spacer width is 0.8 ~150mm, we can customize the spacer size according to your requirements or drawings.

Coil Slitting Lightweight Slitter Spacers GCr15 0



Why choose us:

Precision casting

Proper hardness

Enduring sharpeness

Stabilization durable

Competitive price

Efficient service







Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
