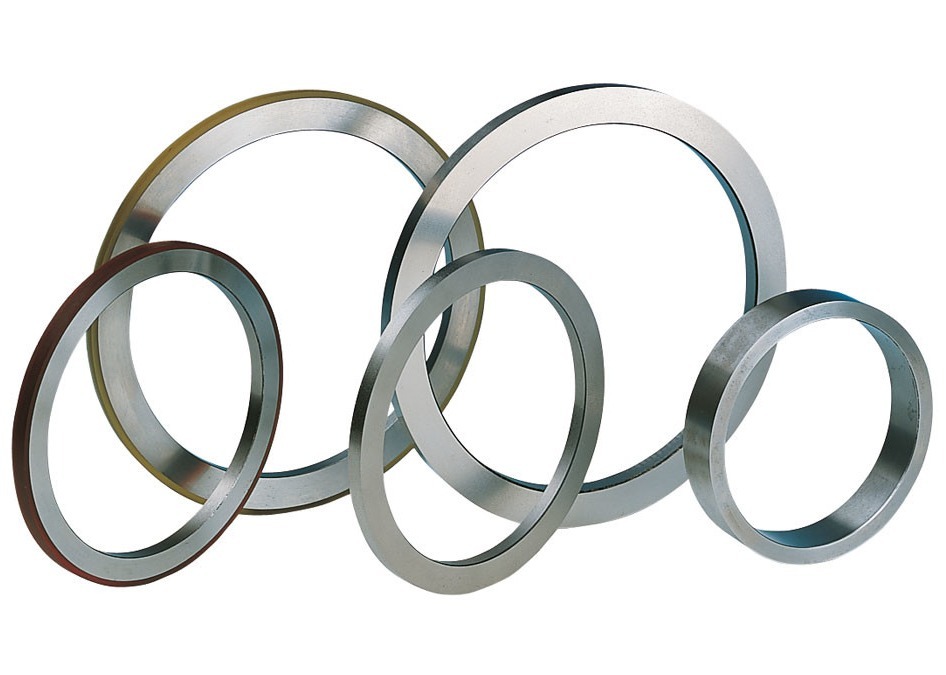

Name: Steel Coil Slitting Spacer Washers For Slitting Line Machine
Brand: Senda Group Co.，Ltd
SKU: SD005
Price: 15.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Metal Light Weight Spacer For Slitter Machine

Material: S45C Or SUJ2(52100)

Thickness Tolerance: +- 0.002

Diameter Tolerance: +0.01

Flatness: ≤0.003

Parallelism: ≤0.003

Concentricity: 0.02

Hardness: 75-85HA

Application: Slitter Lines Toolings

Highlight:

Slitting Spacer Washers

Washers For Slitting Line

Steel Coil Slitting Spacer

Basic Infomation

Place of Origin: China

Brand Name: SENDA

Certification: ISO9001

Model Number: SD005

Payment & Shipping Terms

Packaging Details: anti-rust oil in plastic bag and Packed in strong plywood case

Delivery Time: 30days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Gallery

Steel Coil Slitting Spacer Washers For Slitting Line Machine

Product Description

slitting metal spacer light weight for metal coil slitting machine

Senda Metal spacer are mainly applied to slitter line machines, hardness can be 49-59 HRC. Graduated in thickness from 3 to 100 mm (in exceptional cases up to 250 mm) Different colors Special dimensions of steel cores for trimming systems; Divided spacers
Excellent oil and abrasion resistance

Brand	Senda
Country of Origin	China
Material	S45C or SUJ2 (52100)
Thickness tolerance	+- 0.002
Diameter tolerance	+0.01
Flatness	≤0.003
Parallelism	≤0.003
Concentricity	0.02
Hardness	75-85 H A
Packaging	wooden box with anti-rust film inside
Application	For slitter lines, coil slitting machine

Application of the metal spacer for slitter lines machine:

To adjust the width of coils when the metal coils are slitting, and protect the surface.

Steel Coil Slitting Spacer Washers For Slitting Line Machine 0

Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
