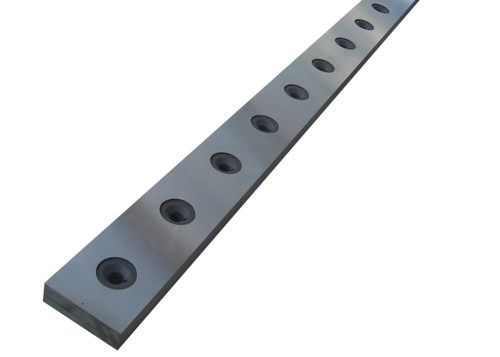

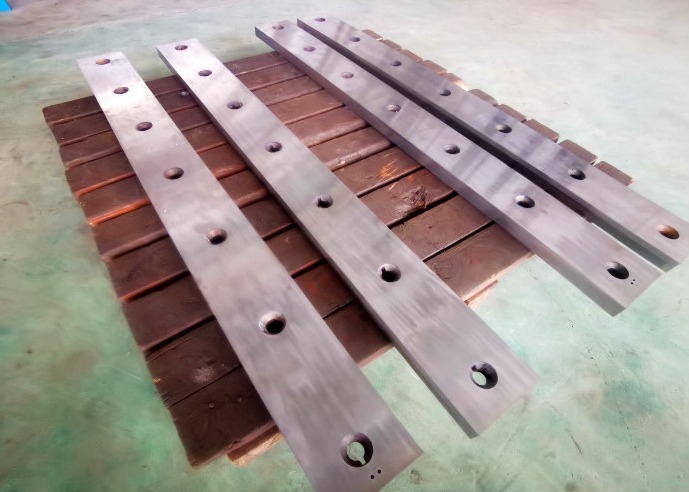

Senda stainless steel coil guillotine shear blade, we also call it: metal shear blade,cross cutting blade,straight cutting blade, these blades are mainly applied to flying shears machines, guillotine shears for cut to length lines. for stainless coils cross cutting application, we provide material D2, 9CrSi for thin plates, with our advanced cold and heat treatment, will performance more durable lifetime.
| Brand | Senda |
| Country of Origin | China |
| Material | D2, M2, 9CrSi etc. |
| Size: | within 100T x 250W x 6000L |
| Size: | Customized |
| Hardness | 58-62HRC |
| Application | electrolytic tinplate coating line |
Advantages of SENDA stainless steel coil guillotine shear blade:
1. Senda Guillotine shear blades can shear generally reach 9000~15,000tons for one time sharpening without edge broken.
2. Liquid nitrogen -196degree cold treatment ensure the hardness and toughness
3. vertical pit furnace ensure the heat-treatment.
Application of the stainless steel coil guillotine shear blade:
1. Normally for cold rolling: 0.2mm~3.2mm stainless steel plates, galvanized plates etc.
2. New material HMY, perfectly shear 3-16mm high strength stainless steel coils
3. popular size:
| dividing shear | 3500×170×100mm； 3500×150×100mm； |
| double side shears TOP | 2080×170×100mm, 2200×170×100mm |
| double side shears BOTTOM | 2075×160×70mm, 2200×150×100mm |
| shear blade | 2600×220×70mm； 3400×220×70mm； |
| 2100×150×65mm； 2650×150×40mm |
Aluminium Mills
Slab Shear knives
Crop Shear Knives
CSP Mills
Pendulum Shear Knives for High nickel Alloy and Hot Work Tool steel
High Speed exit drum shear knives
Hot Strip Mill Knives
Straight Crop Shear Knives
Curved Crop Shear Knives
Sample shear knives
Steckel Mills
Rotary Drum Shear Knives
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
