Replacement Mill Shear Slitting Knives Mild Steel Coil Shearing Machine Parts

slitter machine side trimmer blades for mild steel coil processing

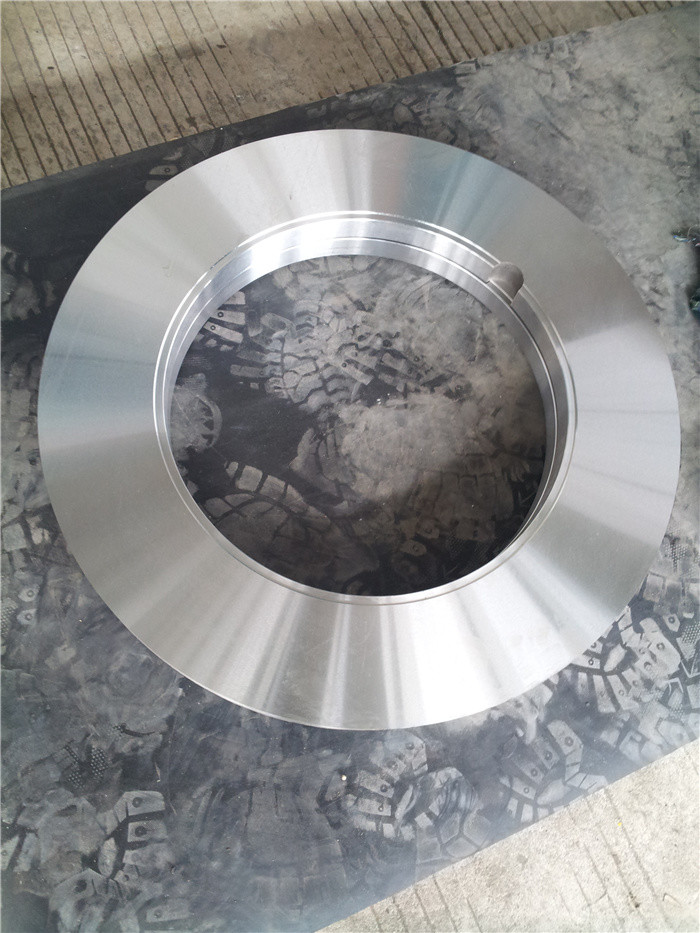

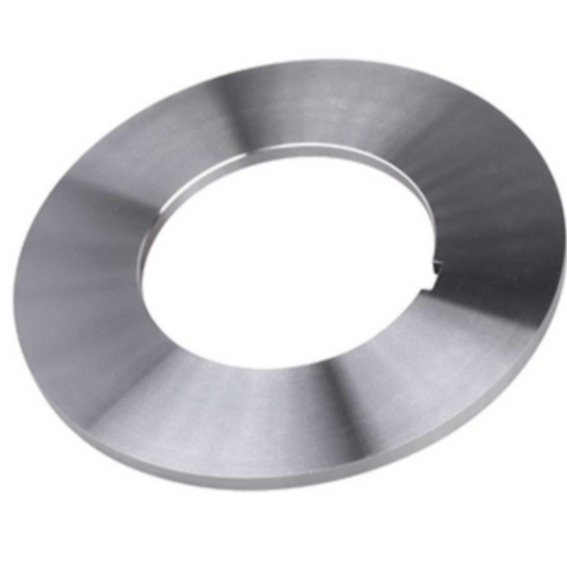

Senda Rotary side trimmer blades used with slying shear blade for cutting hot rolling coid. cold milling coil etc. To adjust the width of steel sheet. with fixing 4pcs of knives which are equipped by 2pcs on each side respectively and they are used for cutting the ends of both: able to cut 0.2~3.2mm sheet for cold milling and cut 1.0~12.7mm sheet for hot milling.

• Available in D2,D3,HSS,H11,H13
• Used for Slitting & trimming mild steel,CRGO,CRNGO,Stainless Steel,Aluminium,Brass & Copper
• Sharp,uniform shearing edge after regrinding.
• High productivity & low downtime.
• Thickness tolerance 0.0015mm ; Flatness tolerance 0.001mm (depends on OD & thickness)
• Lapping for finish upto 0.2 Ra
• Manufacture upto 600mm OD
• Optimum hardness for wear resistance
• Cutting capacity range: 0.1mm to 24mm thick strip
• Surface finish: ground, lapped and polished

You may also need below items:

Rotary blades
Rubber rings
Metal distance rings
Plastic spacers
Separator Discs
Straight Blades
Scrap Chopping Knives

Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
