High Speed Steel Slitting Line Spacer Machine Tool

2pcs
MOQ
High Speed Steel Slitting Line Spacer Machine Tool
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Slitting Machine Spacer
Other Name: Overarm Discs
Material: 65Mn, GCr15, SUJ2, ASTM52100 Etc
Thickness Tolerance: +-0.001
Surface Roundness: Ra0.1um
Parallelism: ≤0.002
Flatness: ≤0.002
Application: Steel Coil Slitting Line
Highlight:

Slitting Blade Spacer

,

High Speed Steel Slitting Spacer

,

Slitting Machine Tool Spacers

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: use anti-rust oil in plastic bag and Packed in strong plywood case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

Senda manufactures spacers made of hardened alloyed tool steel like EN9/EN 31. The spacers are used together with the stripper rings for the exact positioning of rotary slitter knives on the slitter arbor and for precisely adjusting the knife clearance.

Brand Senda
Country of Origin China
Material 65Mn, GCr15, SUJ2, ASTM52100
Thickness +- 0.001
Diameter tolerance +0.02
Flatness ≤0.002
Parallelism ≤0.002
Hardness HRC 57-59
Surface roundness Ra 0.1um
Application coil slitting lines replacement




Application of the Spacers and lightweight spacers:

  1. Spacer for slitter machines for the rotary slitter blades. the commonly used spacer width is 0.8 ~150mm, we can customize the spacer size according to your requirements or drawing.

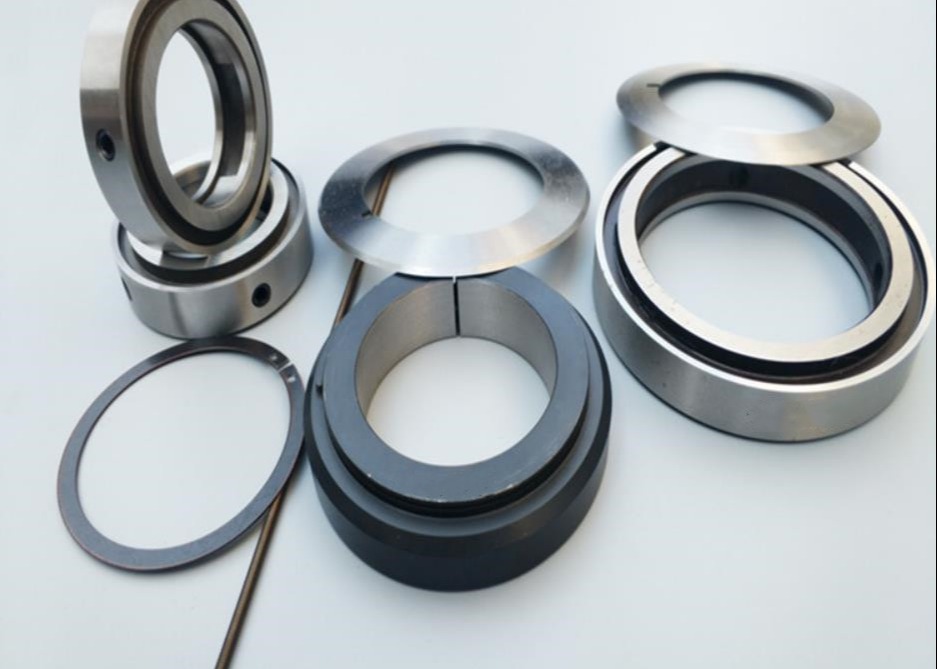

High Speed Steel Slitting Line Spacer Machine Tool 0

High Speed Steel Slitting Line Spacer Machine Tool 1

  1. Advanced equipments
  2. No deformation
  3. Smooth cut-off edge
  4. No burr





Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
