Sheet Metal Slitter Nylon Spacers For Slitting Blade Machine

2pcs
MOQ
Sheet Metal Slitter Nylon Spacers For Slitting Blade Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Nylon Spacer For Slitter Machine
Material: Nylon
Thickness Tolerance: +- 0.002
Diameter Tolerance: +0.01
Flatness: ≤0.003
Parallelism: ≤0.003
Concentricity: 0.02
Color: White
Application: Equipped On Slitter Machine
Highlight:

Metal Slitter Nylon Spacers

,

Nylon spacer for slitter machine

,

Slitter Sheet Metal Spacers

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO 9001
Model Number: SD008
Payment & Shipping Terms
Packaging Details: Packed in strong wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

stainless steel coil slitter machine Nylon spacer for steel factory

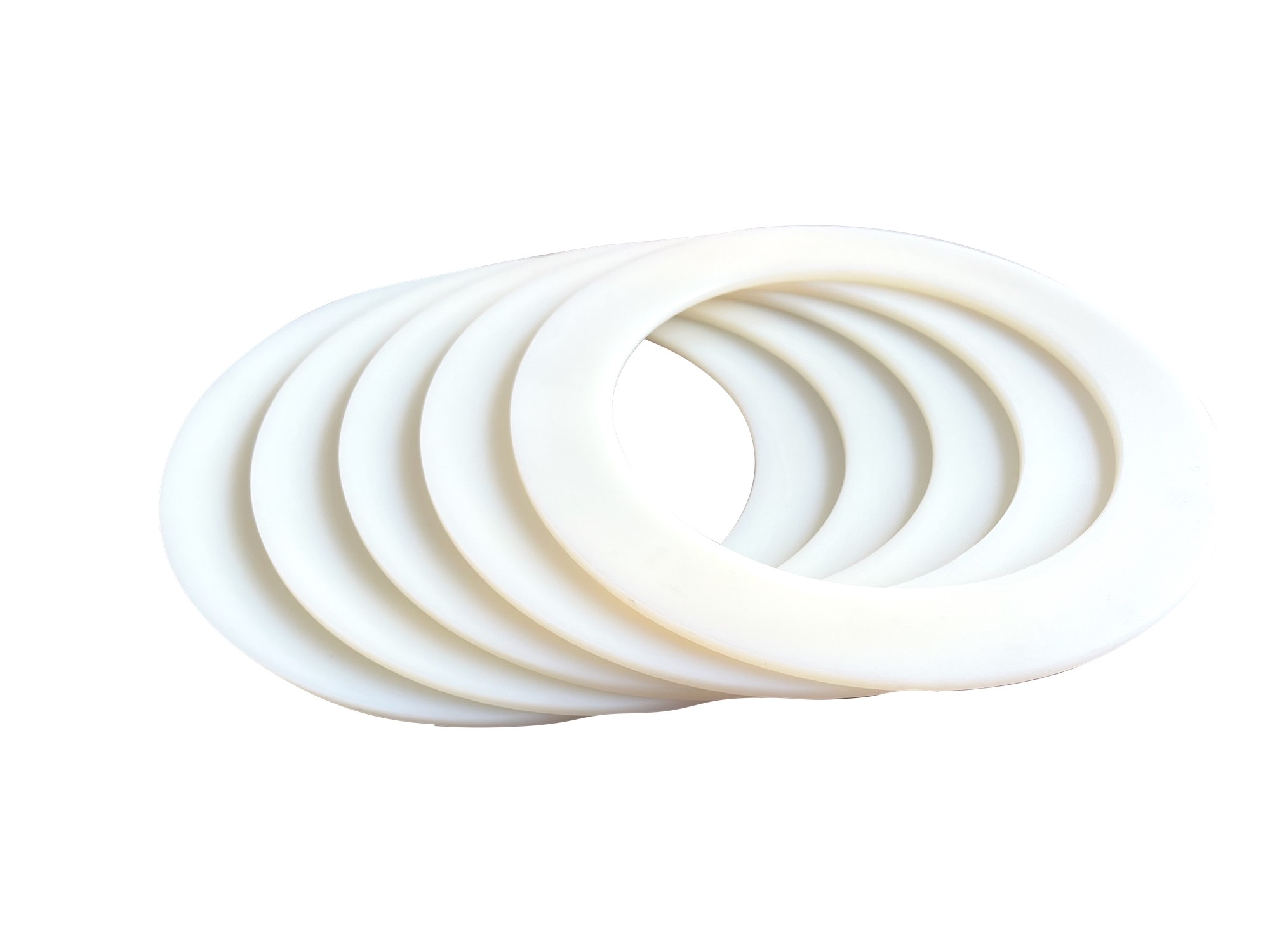

Senda Nylon spacer rings are mainly applied to slitter line machines,  working together with the slitting blades. SENDA offers Nylon spacers made out Nylons. The spacers are used together with the stripper rings for the exact positioning of rotary slitter knives on the slitter arbor and for precisely adjusting the knife clearance. For using with automatic assembly systems, we provide tools with special edge dimensions.





Brand Senda
Country of Origin China
Material Nylon
Thickness tolerance +- 0.002
Diameter tolerance +0.01
Flatness ≤0.003
Parallelism ≤0.003
Concentricity 0.02
Color White
Packaging wooden boxes with anti-rust film inside
Application equipped on slitter machine





Φ105*32*3
Φ105
Φ32
3mm
55-65
Φ120*60*5
Φ120
Φ60
5mm
55-65
Φ160*80*5
Φ160
Φ80
5mm
55-65
Φ200*100*5
Φ200
Φ100
5mm
55-65
Φ210*100*5
Φ210
Φ100
5mm
55-65
Φ220*100*5
Φ220
Φ100
5mm
55-65
Φ240*120*10
Φ240
Φ120
10mm
55-65





Sheet Metal Slitter Nylon Spacers For Slitting Blade Machine 0Sheet Metal Slitter Nylon Spacers For Slitting Blade Machine 1





Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
