Name: Steel Nylon Slitter Spacers For slitter line machine Blade Spacing
Brand: Senda Group Co.，Ltd
SKU: SD008
Price: 15.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Nylon Spacer For Slitter Machine

Material: Nylon

Thickness Tolerance: +- 0.002

Diameter Tolerance: +0.01

Flatness: ≤0.003

Parallelism: ≤0.003

Concentricity: 0.02

Hardness: 119R HS

Application: Equipped On Slitting Machine

Highlight:

Steel Nylon Slitter Spacers

slitter line machine Blade Spacers

Slitter Blade Spacers

Basic Infomation

Place of Origin: China

Brand Name: SENDA

Certification: ISO 9001

Model Number: SD008

Payment & Shipping Terms

Packaging Details: Packed in strong wooden case

Delivery Time: 15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Gallery

Steel Nylon Slitter Spacers For slitter line machine Blade Spacing

Product Description

stainless steel coil slitter machine Nylon spacer for steel factory

Senda Nylon spacer rings are mainly applied to slitter line machines, working together with the slitting blades. SENDA offers Nylon spacers made out Nylons. The spacers are used together with the stripper rings for the exact positioning of rotary slitter knives on the slitter arbor and for precisely adjusting the knife clearance. For using with automatic assembly systems, we provide tools with special edge dimensions.

Brand	Senda
Country of Origin	China
Material	Nylon
Thickness tolerance	+- 0.002
Diameter tolerance	+0.01
Flatness	≤0.003
Parallelism	≤0.003
Concentricity	0.02
Hardness	119R HS
Packaging	wooden boxes with anti-rust film inside
Application	equipped on slitting line machine

Φ105323	Φ105	Φ32	3mm	55-65
Φ120605	Φ120	Φ60	5mm	55-65
Φ160805	Φ160	Φ80	5mm	55-65
Φ2001005	Φ200	Φ100	5mm	55-65
Φ2101005	Φ210	Φ100	5mm	55-65
Φ2201005	Φ220	Φ100	5mm	55-65
Φ24012010	Φ240	Φ120	10mm	55-65

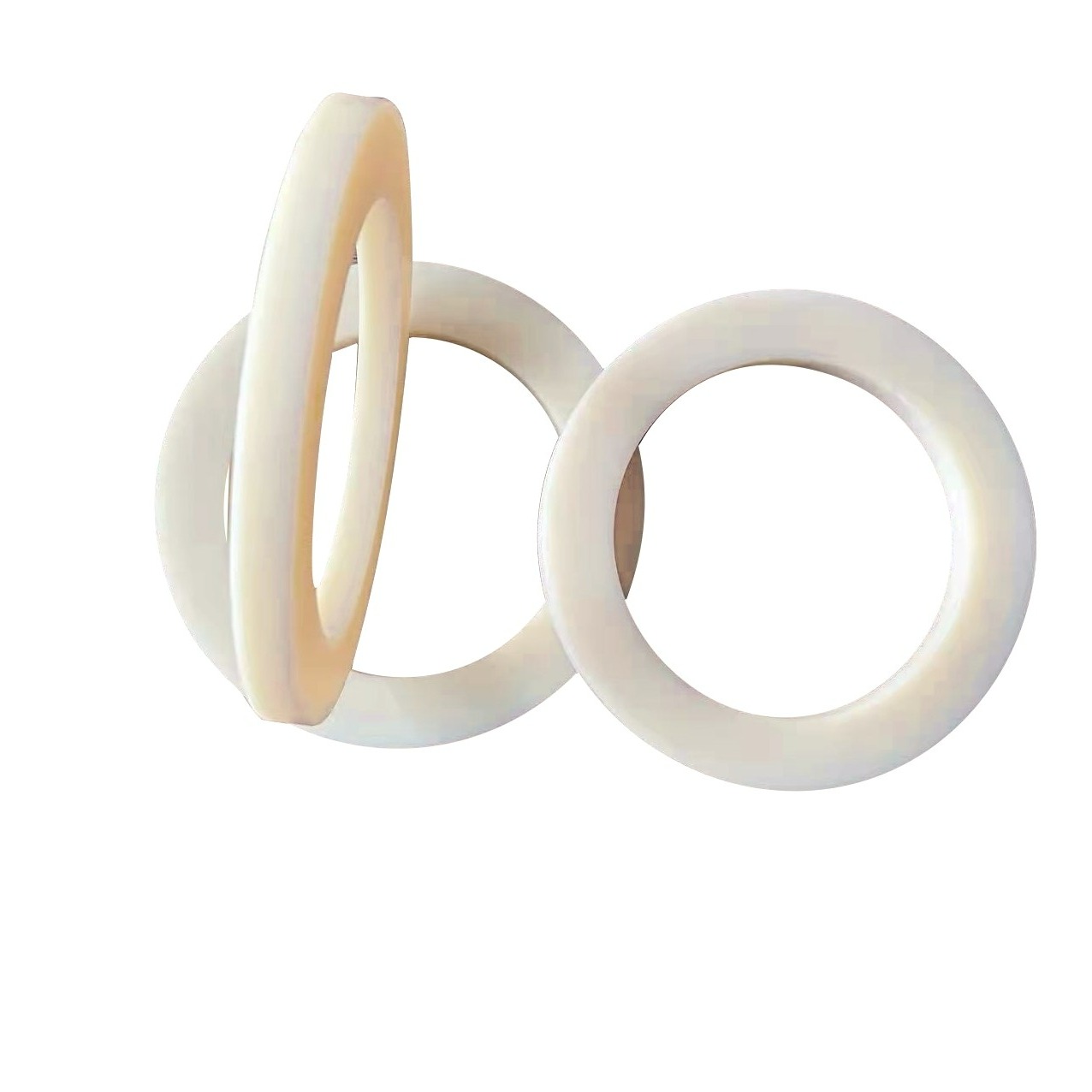

Steel Nylon Slitter Spacers For slitter line machine Blade Spacing 0

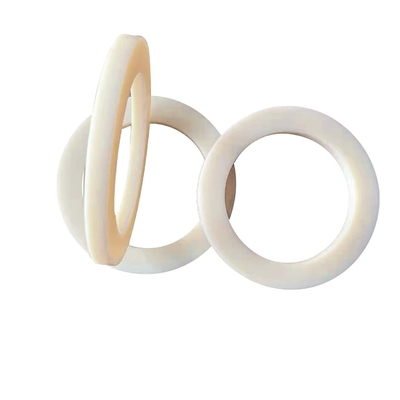

Steel Nylon Slitter Spacers For slitter line machine Blade Spacing 1

We also supply a wide range of accessories, including:

Bolts
Hydraulic Nuts
Knife Boxes
Knife Seats

Shims
Spacers and Bonded Spacers
Stripper Rings

Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
