Name: Customized Hydraulic Shearing Machine Blades Shear Stainless Steel Blades Cutting Knife Metal Cutting Machine Blade
Brand: Senda Group Co.，Ltd
SKU: SD001
Price: 10 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Hardness: HRC62-64

Width: According To Requirements

Thickness: According To The Drawing

Application: Cut-to-length Line, Rolling Mill Plant

Material: HMY, HMB, H13K Etc

Tolerance: According To The Drawing

Coating: TiCN, TiAlN

Edge Angle: Double Third

Other Name: Crop Shear Blades

Size: Max 6000mm Length

Surface Treatment: Smooth Surface

Basic Infomation

Place of Origin: China

Brand Name: SENDA

Certification: ISO9000

Model Number: SD001

Payment & Shipping Terms

Packaging Details: Simple packing / Plastic box packing / Blister packing / or Requested by customers(for tobacco slitting knives )

Delivery Time: 5-7 Work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000pcs/mouth

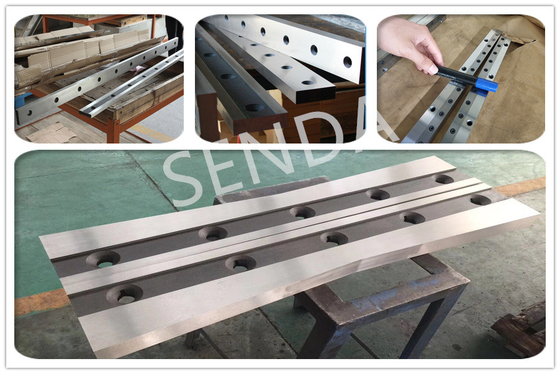

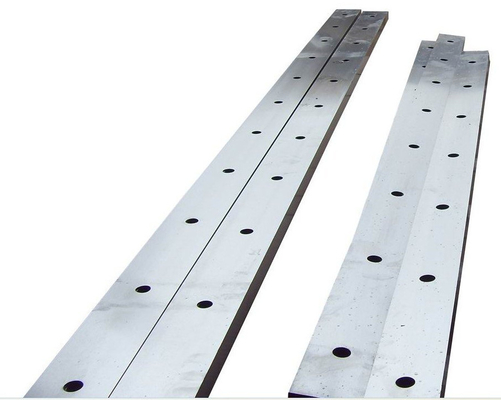

Gallery

Customized Hydraulic Shearing Machine Blades Shear Stainless Steel Blades Cutting Knife Metal Cutting Machine Blade

Product Description

Products Description

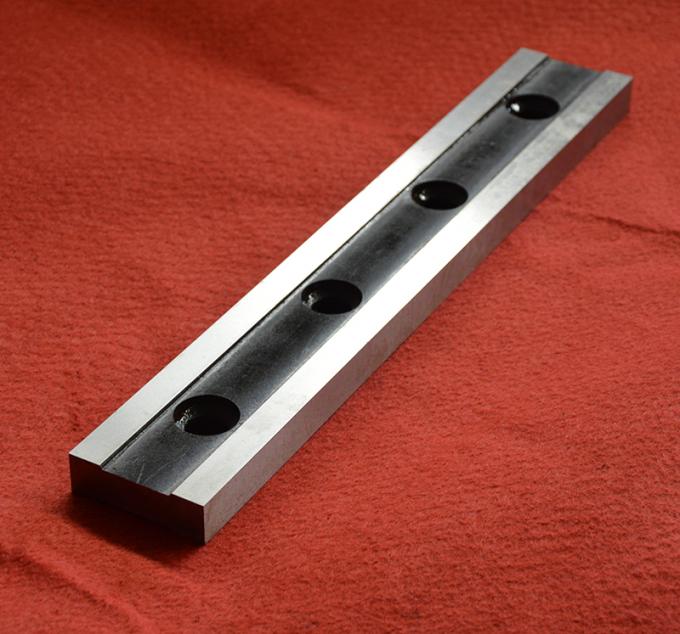

The cutter blade is mainly used for cutting and dividing steel plate, stainless steel plate, hot rolled plate, cold rolled plate and pattern plate. The blade is suitable for QC-11Y, QC-12Y different series of hydraulic shears, and the thickness of the blade can be cut from 0.1mm-25mm.

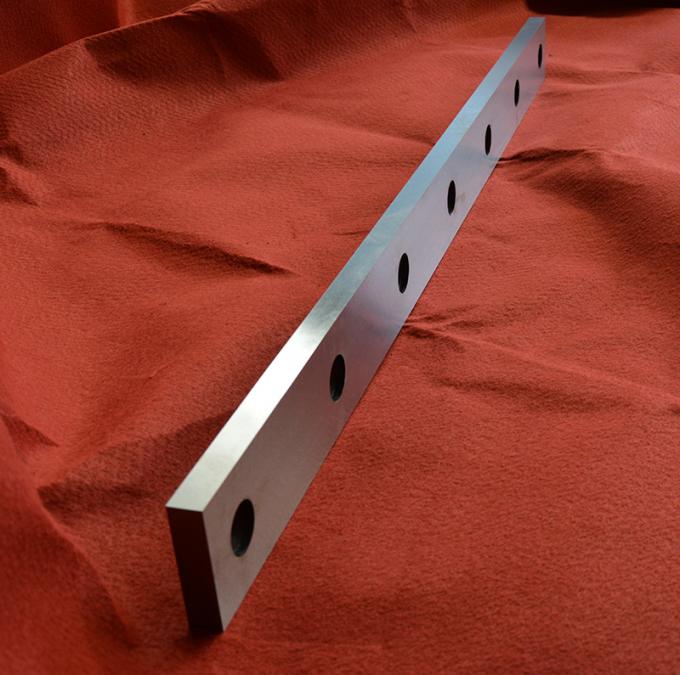

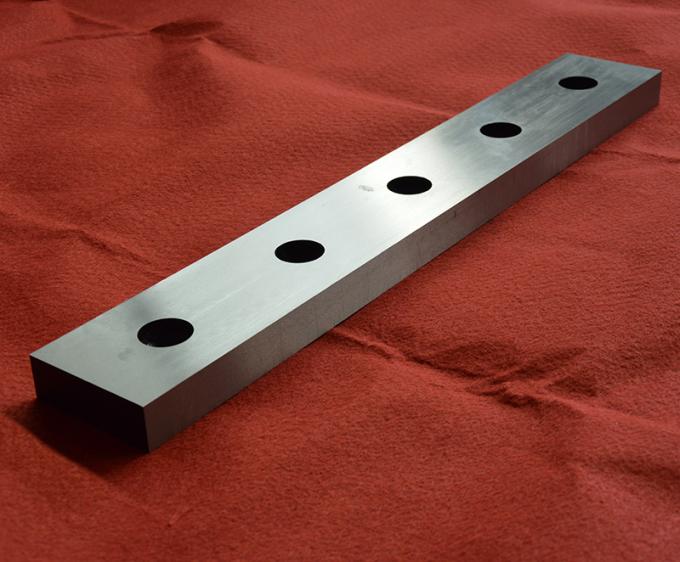

Details Images

Material

The common materials of the blade are 9CrSi, 6CrW2Si, Cr12MoV, SKD-11, H13, LD and other high-quality steel.
According to the material of the required cutting steel plate and the thickness of the steel plate to choose the appropriate material of the blade.
Choosing the right material of the blade is related to your use cost and production efficiency.

Process flow

Shearing machine blade production needs to go through material selection, raw material forging, rough milling processing, material straightening, blade punching, vacuum quenching, cryogenic tempering treatment, rough grinding, stress removal, fine grinding, degaussing, hardness detection, size detection, rust treatment, packaging and delivery.
Each step needs to be produced according to the process to ensure the quality of the blade.

Hardness

The hardness and toughness of the blade determine the service life of the blade, the production of the blade needs to be vacuum heat treatment according to the quenching temperature of different materials, and the low temperature tempering treatment at 3 intervals of 8 hours can ensure that the hardness and toughness of the blade are good.The hardness of the blade of different materials is generally controlled at HRC58-62°.

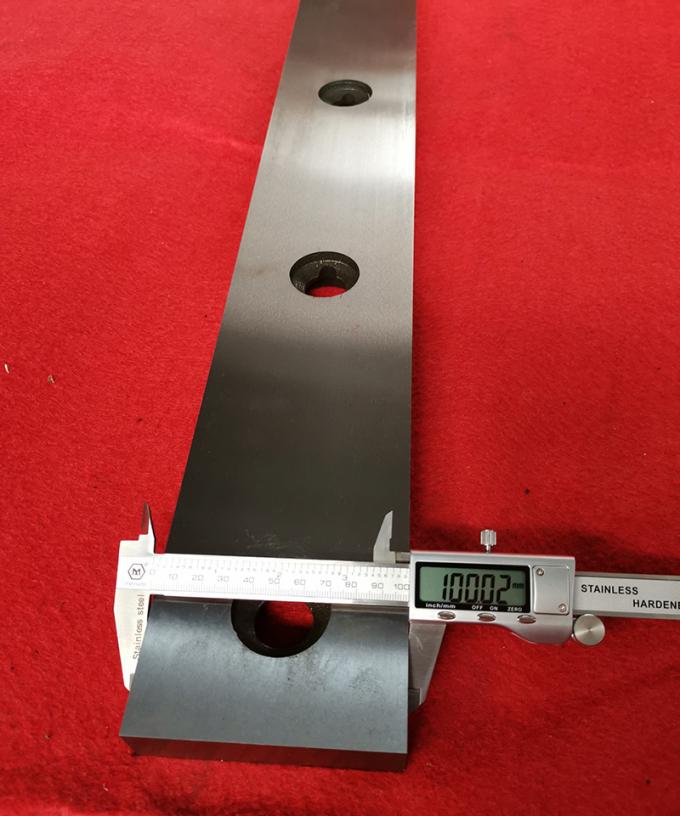

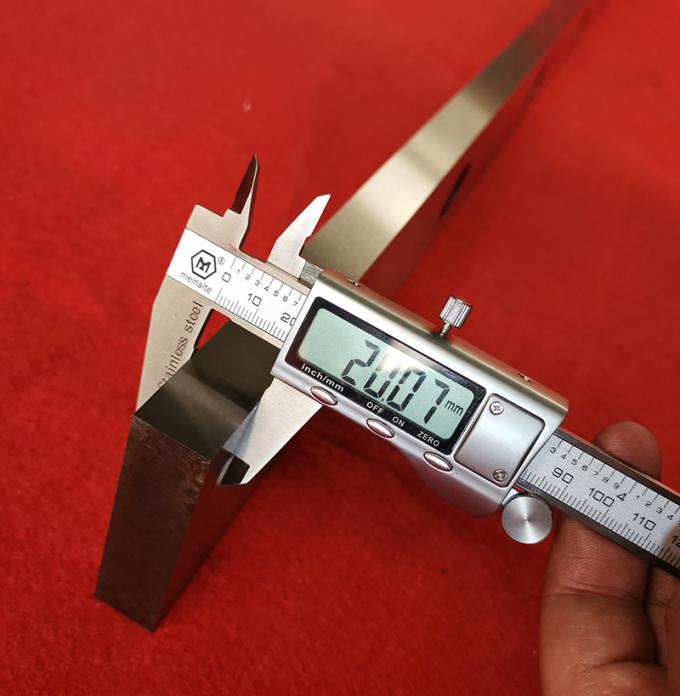

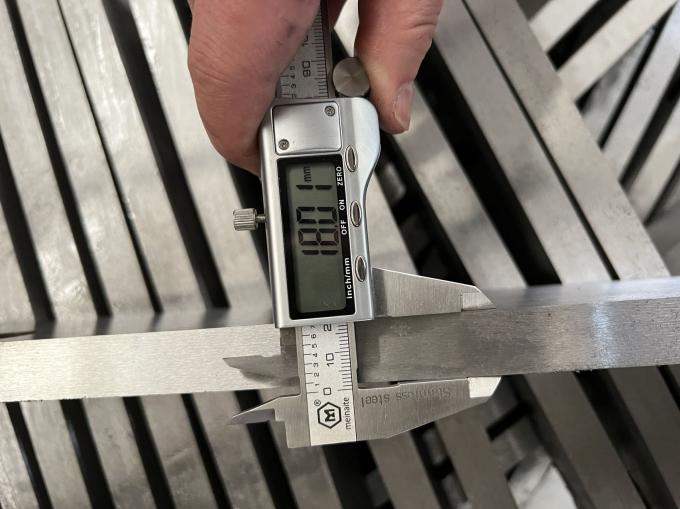

Dimensional accuracy

All the dimensions of the cutting machine blade are produced and processed according to the requirements of customer drawings.
The standard blade length tolerance is controlled at ±0.1mm, the width tolerance is controlled at ±0.05m, the thickness tolerance is ±0.05mm and the parallelism is ±0.05mm.and the surface finish can reach Ra<0.2.If higher precision requirements are required, surface grinding can be increased, which can achieve higher dimensional accuracy.

Custom

We have a stock of blades for most of the mainstream standard shears on the market, including QC12Y-6*2500, QC12Y-8*3200,QC12Y-12*4000 and other commonly used models.
We can produce different sizes of blades, from 100mm to 6000mm in length, the blades can be segmented or integrated.In the past 20 years, we have been continuously improving the production and processing technology of blades, and constantly improving the quality of blades, hoping to provide better products to customers.

Product Paramenters

Machine Type	Length	Width	Thickness	Hole Number	Center Pitch
QC12Y-4x2500	1300mm	63mm	16mm	7	200mm
QC12Y-6x2500	1300mm	80mm	20mm	7	200mm
QC12Y-16x2500	1300mm	100mm	25mm	7	200mm
QC12Y-25x2500	1300mm	125mm	32mm	7	200mm
QC12Y-4x3200	1100mm	63mm	16mm	6	200mm
QC12Y-6x3200	1100mm	80mm	20mm	6	200mm
QC12Y-16x3200	1100mm	100mm	25mm	6	200mm
QC12Y-25x3200	1100mm	125mm	32mm	6	200mm
QC12Y-4x4000	1025mm	63mm	16mm	6	185mm
QC12Y-6x4000	1025mm	80mm	20mm	6	185mm
QC12Y-16x4000	1025mm	100mm	25mm	6	185mm
QC12Y-25x4000	1025mm	125mm	32mm	6	185mm

Company Profile

Why choose us?

SENDA INDUSTRIAL KNIFE Factory In the knife mold production has nearly 20 years of production and processing experience, strong technical strength, high quality mature products, perfect service system.

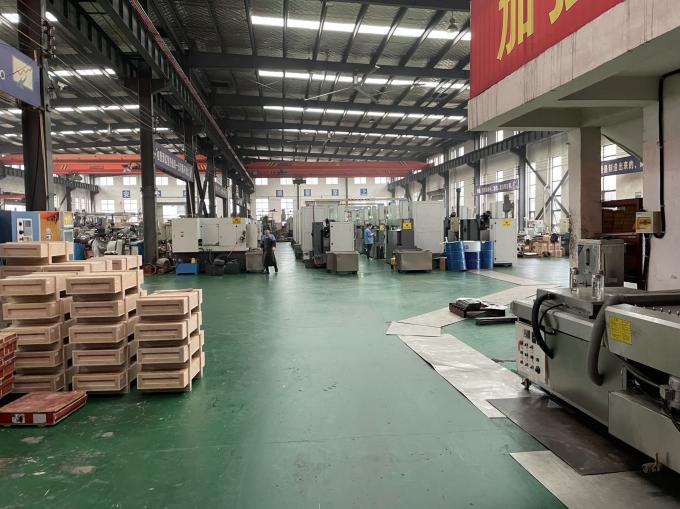

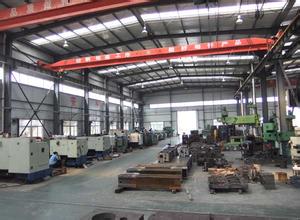

Processing workshop

Finishing workshop

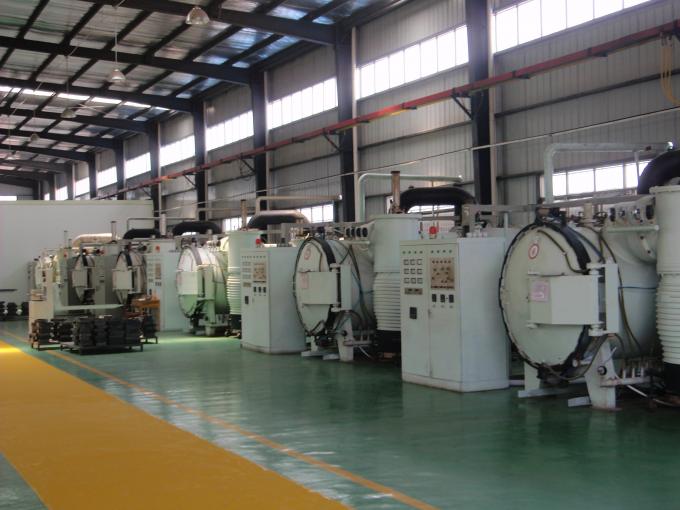

Heat treatment workshop

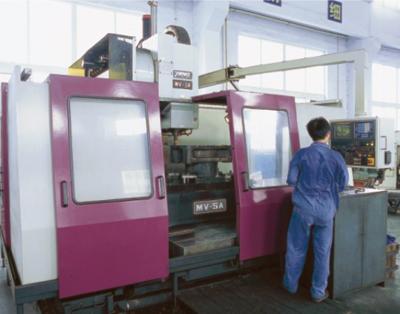

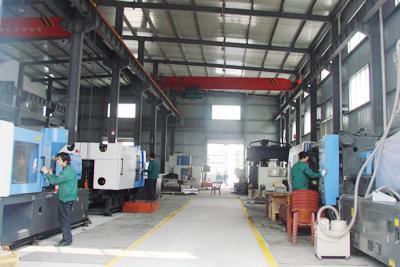

CNC processing workshop

CNC processing workshop

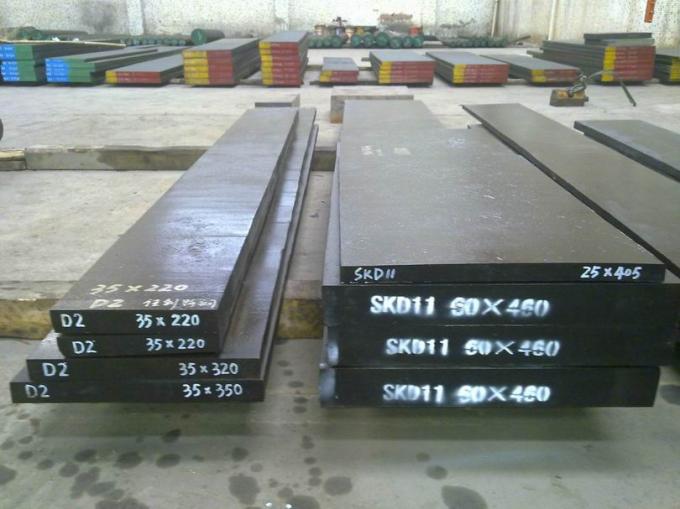

Raw material workshop

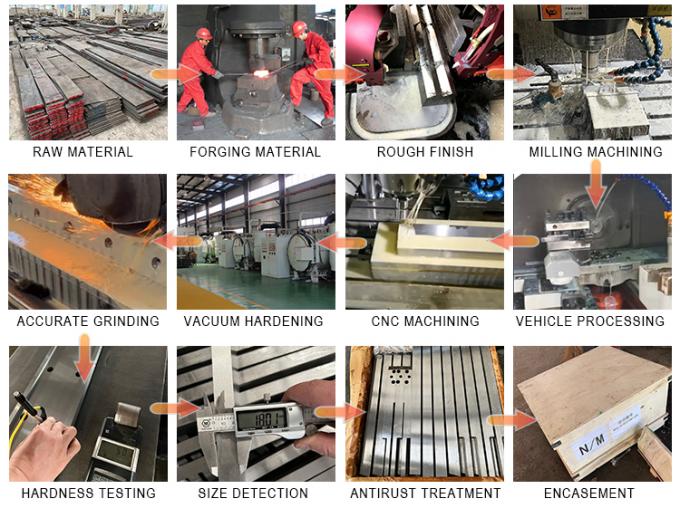

Production Process

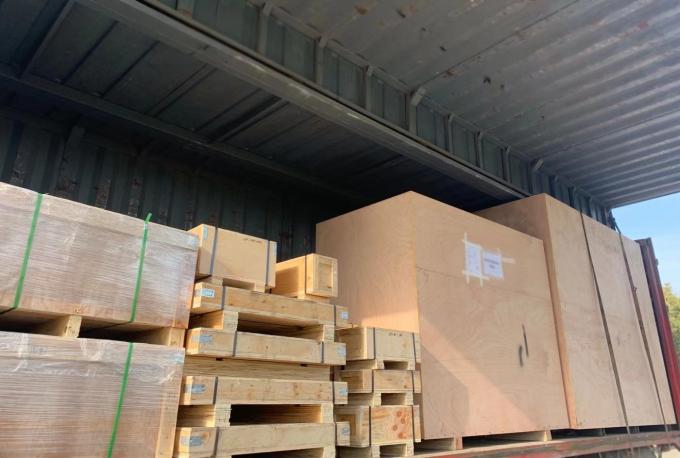

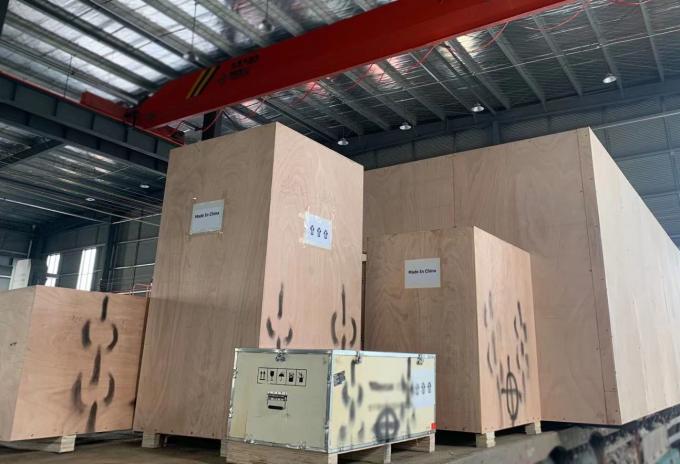

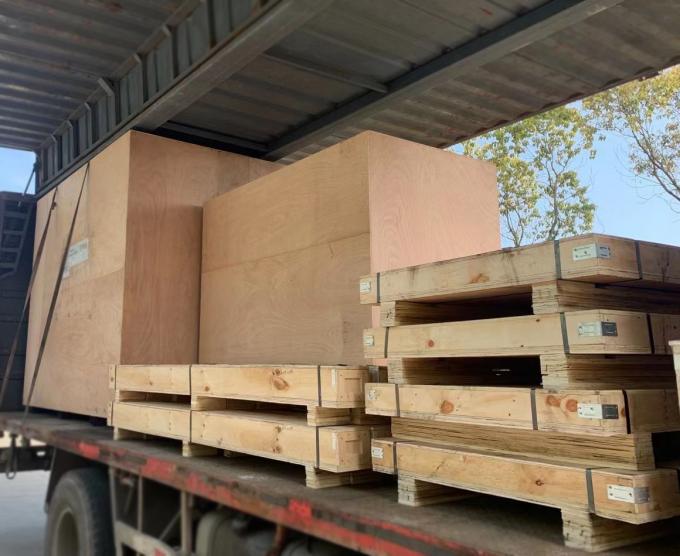

Product packaging

1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.

2. All the spare parts were covered by the some soft materials mainly using pearl wool.

3. The bottom of the wooden case has firm iron jack, convenient to handing and transport.

Our Serives

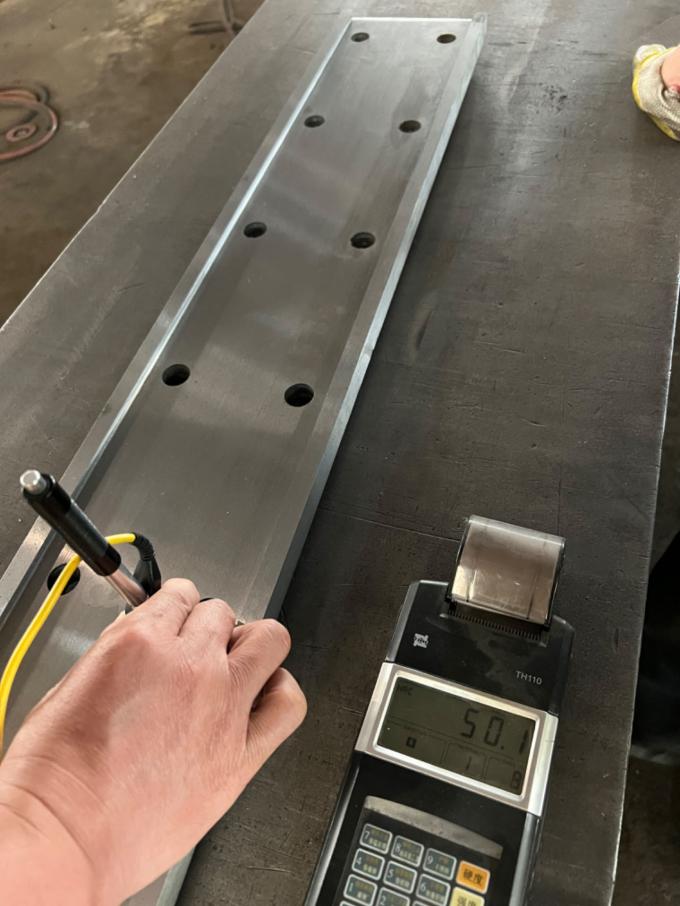

All heat-treated products need to be produced according to the hardness required by customers, hardness testing is carried out before delivery, and the tolerance is strictly controlled within HRC±1°.

All products need to be produced according to the drawing size required by customers, and the dimensional tolerance test is carried out before delivery, and the tolerance is strictly controlled within ±0.01mm.

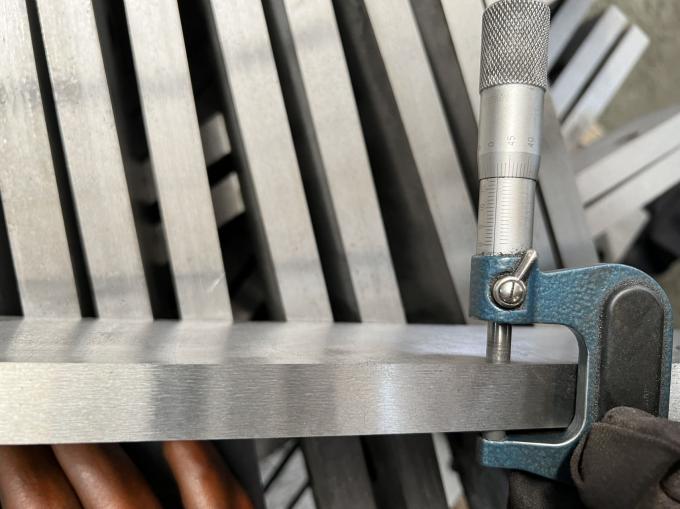

All products need to be produced according to the drawing size required by customers, with micrometer detection tolerance before delivery, special accuracy requirements can reach ±0.001mm.

FAQ

1. What's price?

We quoted based on your dimension, quantity, and material.

2. What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

3. What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.

4. What is the product warranty?

We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.

5. Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

6. How about the shipping fees?

The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
