K110 Roll Shear Knife Blade Slitting Machine Blades

2pcs
MOQ
K110 Roll Shear Knife Blade Slitting Machine Blades
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Rolling Shear Knife
Other Name: Rolling Shearing Blade
Material: SKD11,D2, M2, K110, LD
Thickness Tolerance: +-0.001mm
Inner Diameter: +0.02mm
Flatness: ≤0.002mm
Parallelism: ≤0.002mm
Concentricity: ≤0.02mm
Surface Roundness: Ra0.1um
Hardness: Tool Steel: HRC58~61
Application: Electrolytic Tinplate Coating Line
Highlight:

roll slitting knives

,

roll slitting blades

,

slitting machine blades

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Model Number: SD004
Payment & Shipping Terms
Packaging Details: anti-rust oil in plastic bag,Packed in strong wooden cases
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

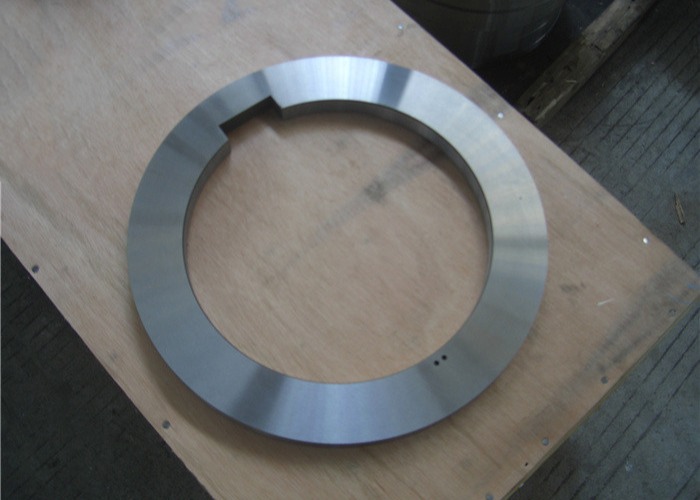

slitter machine rolling shear knife for tinplate coating line



Senda rolling shear blades for tinplate coating line used with flying shear blade for cutting hot rolling coid. cold milling coil etc. with fixing 4pcs of knives which are equipped by 2pcs on each side respectively and they are used for cutting the ends of both: able to cut 0.2~3.2mm sheet for cold milling and cut 1.0~12.7mm sheet for hot mills.



Brand: Senda

Country of Origin: China

Material: SKD11,D2, M2,LD, K110

Size: MAX OD1500mm

Thickness tolerance: +- 0.001mm

Inner Diameter: + 0.02mm

Flatness: ≤ 0.002mm

Parallelism: ≤ 0.002mm

Concentricity: ≤ 0.02mm

Surface roundness : Ra 0.1um

Hardness: Tool steel: HRC57~~59

Packaging: plywood case with anti-rust film inside

Application:  electrolytic tinplate coating line





Knives are available with polished side faces ,High cost performance ,Punctual delivery .



K110 Roll Shear Knife Blade Slitting Machine Blades 0






K110 Roll Shear Knife Blade Slitting Machine Blades 1



Packaging Details:

1, PE film or Kraft paper in anti-rust oil - keep air/water/humid away, thus rust-proofing

2, Bubble Wrap - increases the impact resistance ability

3, Rubber Slip or Corrugated Angle - gives special care to knife edges

4, Wood Screws crates - makes opening easier without damaging the crates

5, Corrugated boxes or plywood case - provide superior protection and stack-ability





Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
