Name: Coil Slitter Hyd Nut 42CrMo Slitting Line Tooling
Brand: Senda Group Co.，Ltd
SKU: SD007
Price: 15.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Hydraulic Nuts For Slitter Line

Other Name: Grease Activated Mechanical Nuts For Slitter Line

Material: 42CrMo, Al-Ti Alloy Etc

Application: Steel Making Plant

Lead Time: 20 Days

OEM: Yes

Highlight:

Coil Slitter Hyd Nut

Hyd Nut 42CrMo

42CrMo hydraulic clamp nut

Basic Infomation

Place of Origin: China

Brand Name: SENDA

Certification: ISO9001

Model Number: SD007

Payment & Shipping Terms

Packaging Details: use anti-rust oil in plastic bag and Packed in strong plywood case

Delivery Time: 15-20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gallery

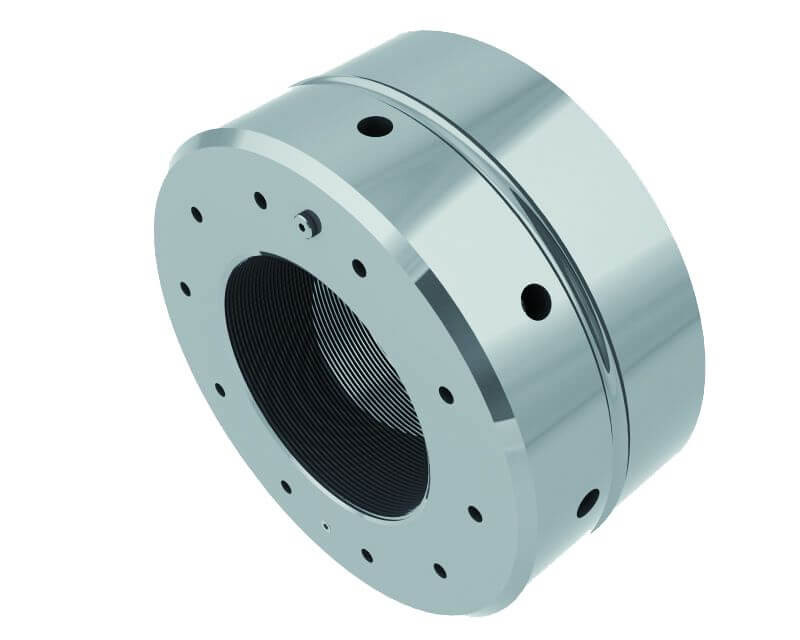

Coil Slitter Hyd Nut 42CrMo Slitting Line Tooling

Product Description

slitter machine hydraulic nuts for coil processing lines

Senda Hydraulic Nut is a permanent fixture, replacing the conventional nut and retaining the high bolt load and extension in small space envelopes where there may not be sufficient space to use tensioners. High pressure hydraulic oil from a pump applies an accurate, axial load to the fastener. Once the system reaches a predetermined pressure, the operator uses a small bar to run the nut down by hand.

Laying-off: selecting raw material

Forging: enhance the density and consistency

Annealing: increase the ductility and reduce the hardness

Rough machining: to be shaped into an intended design roughly

Heat-treatment: obtain desired properties vacuum heat-treatment

Quenching: obtain certain material properties

Cold and cryogenic treating: increase the hardness, wear resistance, and reduce the internal stresses

Tempering: lessening brittleness and reducing internal stresses

Finish machining: to be shaped into an intended design finely

Grinding: improve the precision, Our parallelism will reach Ra1.60

Inspection

Labeling

Packaging

Brand	Senda
Country of Origin	China
Material	42CrMo,Al-Ti Alloy
Packaging	wooden box with anti-rust film inside
Application	Slitting machine hydraulic nut replacement for Steel making plant

1. Features
a. Black-oxide outside type
b. Special finishing for up to 240℃ working conditions
c. Optional materials, like stainless steel, chrome plated for corrosion resistance
d. High pressure unidirectional or bidirectional joint
e. Max. pressure: 800 bar
f. Easy operation and disassembly

Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
