Roll Shear Slitting Knives SKD11 Metal Processing Coil Cut To Length

metal processing machine rolling shear knives for steel making factory

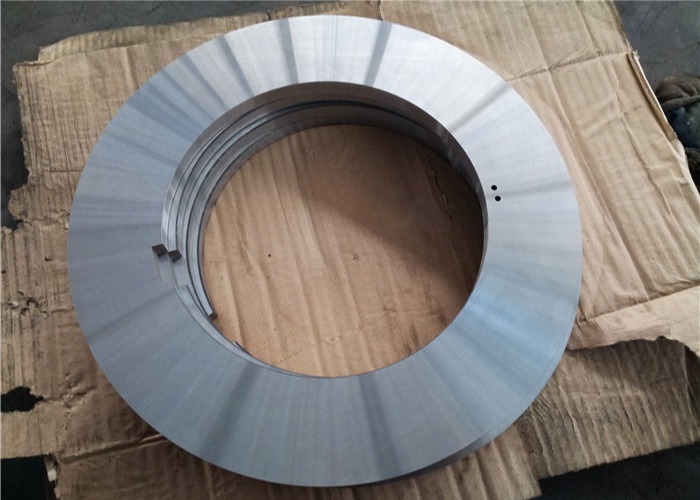

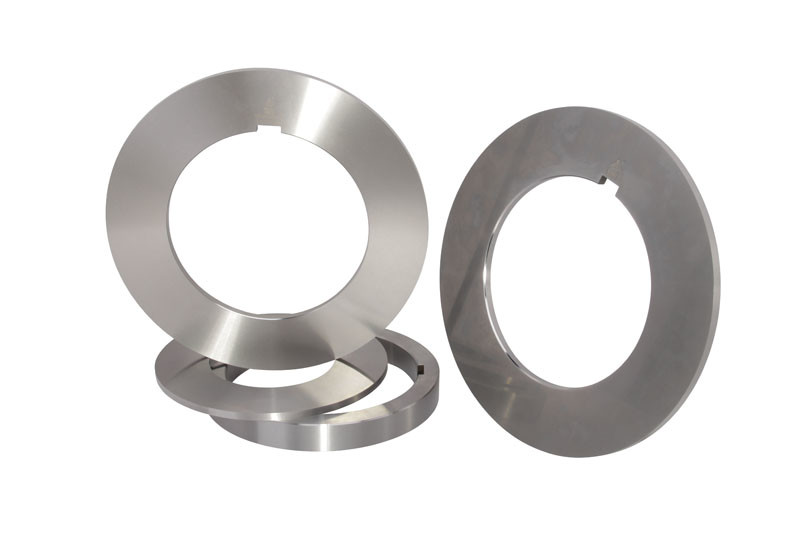

Senda Rotary slitting knives for metal coil processing are mainly applied to slitter machine. Shear slitting requires two blades, a top blade known as the “male knife” and the bottom blade, known as the “female knife” or “anvil.” The male knife is adjusted at the cant angle so that the two blades to come into contact at the nip point, similar to a pair of hand scissors, which separates the material. To achieve the longest life, female knives should have a larger outer diameter than male knives and be manufactured from a material that has a higher hardness level.

We offer slitter knives of Diameter max1500mm in various material options such as H13, H13K , SKD11, LD , D2 and so on. Our knives are offered in hardness range of 52-64 HRC with Thickness tolerances of up to +/- 0.001mm. We offer flatness within - 0.002mm and Parallelism tolerances within 0.002mm.

Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
