Large Diameter 1200mm Rotary Slitter Knives For Rolling Mill Equipment

2pcs
MOQ
Large Diameter 1200mm Rotary Slitter Knives For Rolling Mill Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Sheet Metal Slitter Rotary Slitting Knives
Other Name: Slitter Blade, Sheet Rotary Slitter Blade
Material: SKD11,D2, M2, HSS, KL-56
Thickness Tolerance: +-0.001mm
Inner Diameter: +0.02mm
Flatness: ≤0.002mm
Parallelism: ≤0.002mm
Concentricity: ≤0.02mm
Surface Roundness: Ra0.1um
Hardness: Tool Steel: HRC53~55
Application: Sheet Metal Slitting Lines, Sheet Metal Slitter Machine
Highlight:

diameter 1200mm rotary slitter knives

,

diameter 1200mm rotary slitter blades

,

rolling mill equipment rotary slitter knives

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Model Number: SD004
Payment & Shipping Terms
Packaging Details: anti-rust oil in plastic bag and Packed in strong plywood case
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

Large diameter sheet metal slitter machine rotary slitting knives for stainless steel coils and sheets



Senda sheet metal rotary slitting knives for metal sheet processing are mainly applied to sheet metal slitter machines. Metal slitting blades cut for cold milling sheets, we often use LD, HMY material for thick plate and coil cutting. And for hot milling sheets, we often recommend to use H13, H13K, HMB material to do the slitting for durable under high temperature. With our experience, we offer the best suitable metal sheet sltting blade for your metal sheet slitter systems.



Brand Senda
Country of Origin China
Material D2, M2, HSS, KL-56 etc
Size: Customized
Thickness tolerance +- 0.001mm
Inner Diameter +0.02mm
Flatness ≤0.002mm
Parallelism ≤0.002mm
Concentricity ≤0.02mm
Surface roundness Ra 0.1um
Hardness TCT: HRA 89~93,  Tool steel: HRC53~65
Packaging wooden box with anti-rust film inside
Application For slitter machine,  rolling mill equipment etc.



Application of the Sheet metal slitter machine Rotary slitting knives for metal sheet processing:

1. Normally for hot rolling processing: 1mm~12.7mm mild steel sheets, stainless steel sheet etc.

2. Normally for cold rolling processing: 0.02mm~3.2mm carbon steel sheets, stainless steel sheets, galvanized sheets etc.

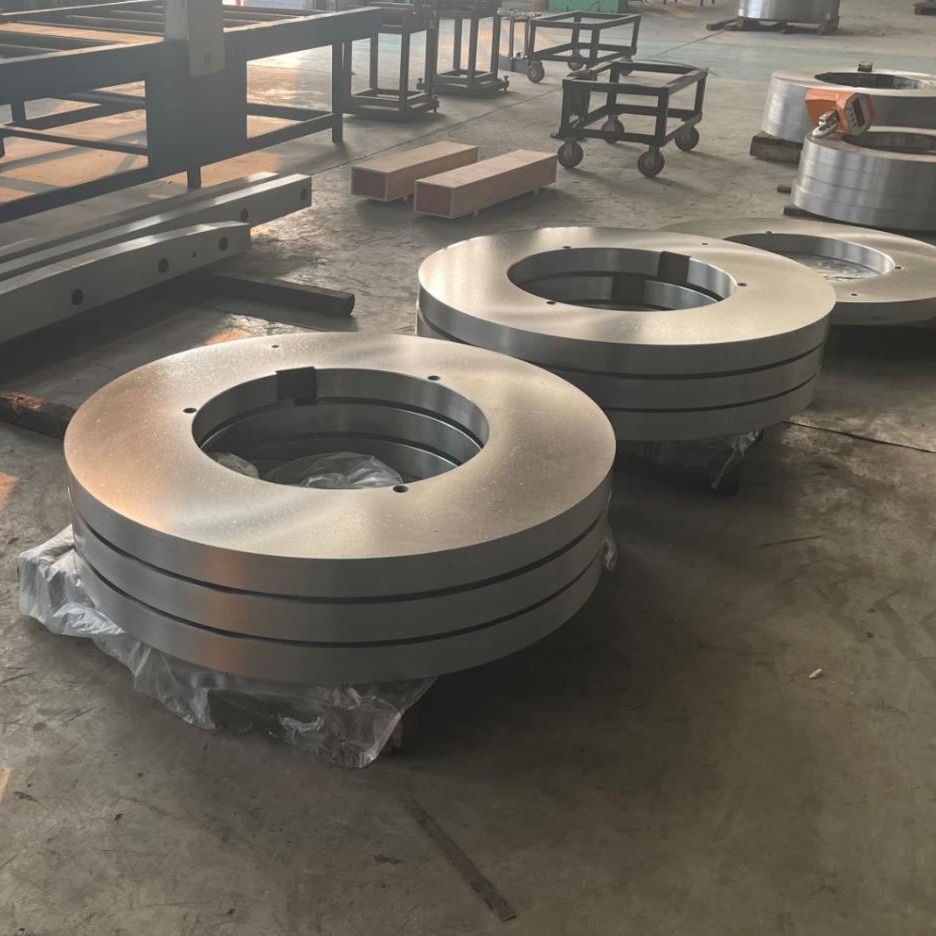

Large Diameter 1200mm Rotary Slitter Knives For Rolling Mill Equipment 0

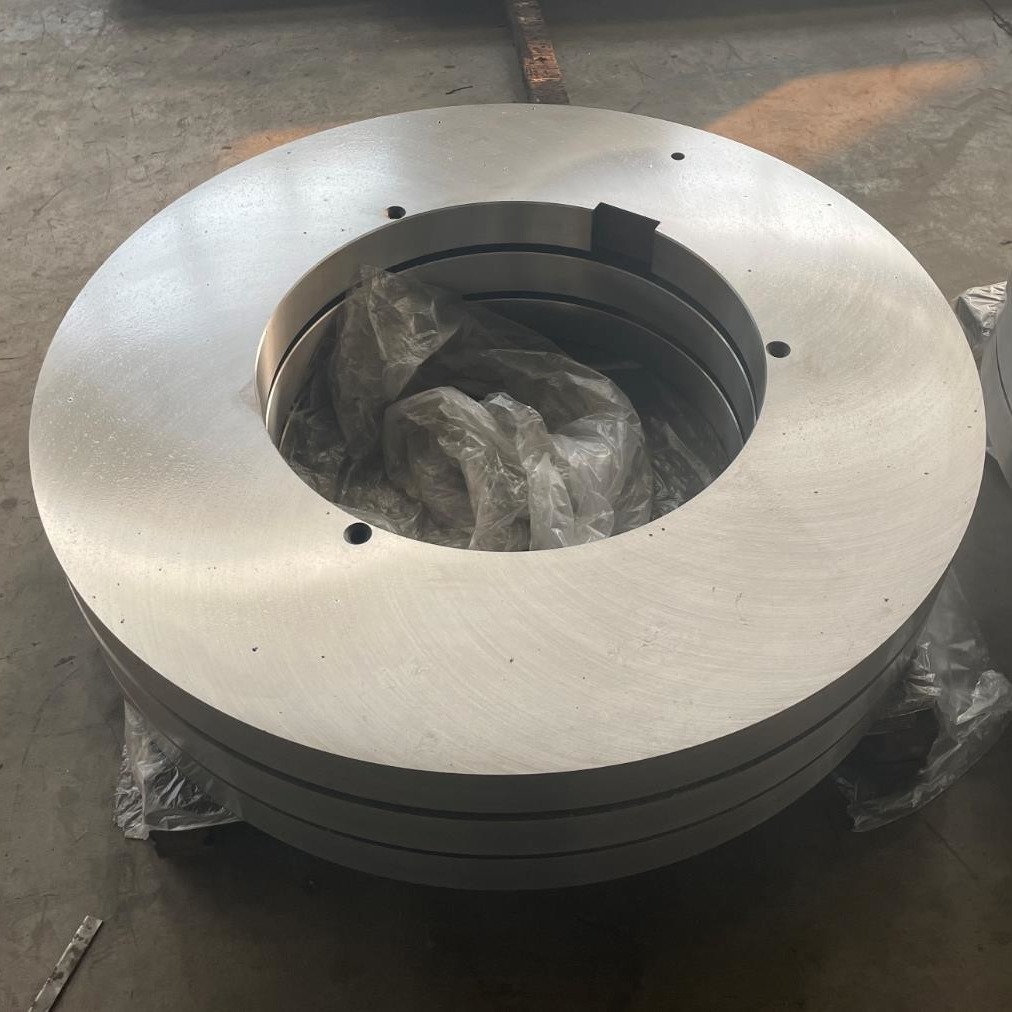

Large Diameter 1200mm Rotary Slitter Knives For Rolling Mill Equipment 1

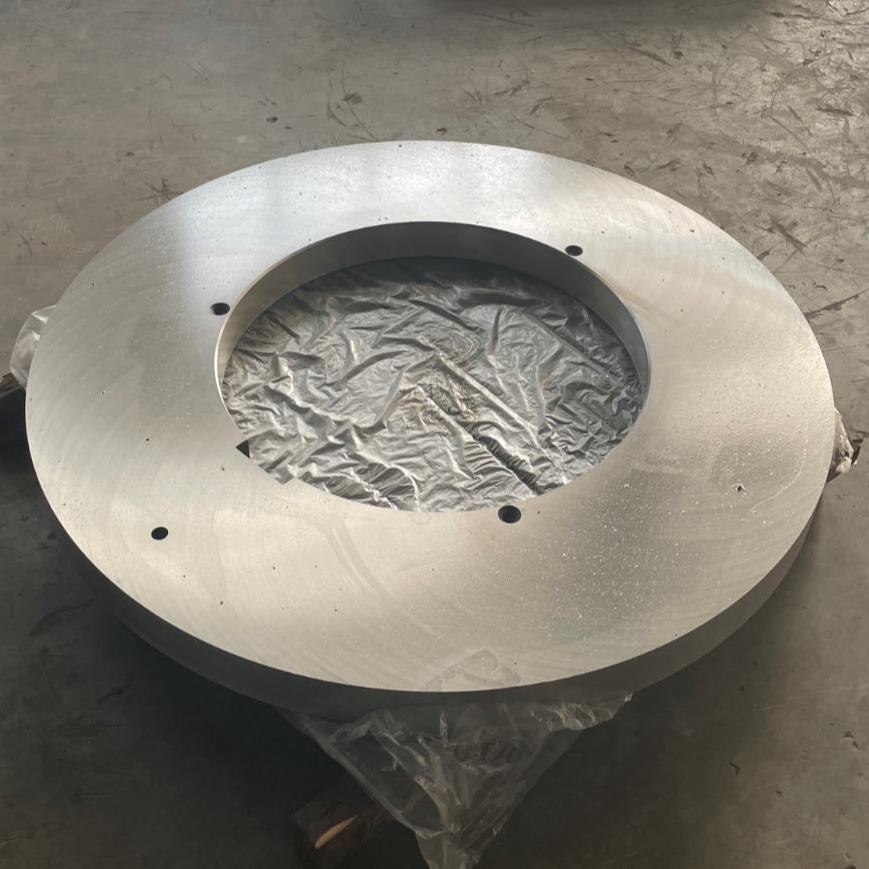

Large Diameter 1200mm Rotary Slitter Knives For Rolling Mill Equipment 2





You may also need below items:

Rotary shear blades
Rubber bonded stripper rings
Metal distance rings
Plastic spacers
Separator Discs
Clamping nuts with grease
Straight shear Blades
Scrap Chopping Knives





Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
