Hrc58 ISO9001 Circle Blade Knife For Metal Sheet Slitting

2pcs
MOQ
Hrc58 ISO9001 Circle Blade Knife For Metal Sheet Slitting
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Rolling Shear Blades
Other Name: Rolling Shear Knife
Material: KL-56
Thickness Tolerance: +-0.001mm
Inner Diameter: +0.02mm
Flatness: ≤0.002mm
Parallelism: ≤0.002mm
Concentricity: ≤0.02mm
Surface Roundness: Ra0.1um
Hardness: Tool Steel: HRC58~61
Application: Electrolytic Tinplate Coating Line
Highlight:

hrc58 circle blade knife

,

iso9001 circle blade knife

,

electrolytic tinplate coating line slitter blades

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Model Number: SD004
Payment & Shipping Terms
Packaging Details: anti-rust oil in plastic bag,Packed in strong plywood case
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description

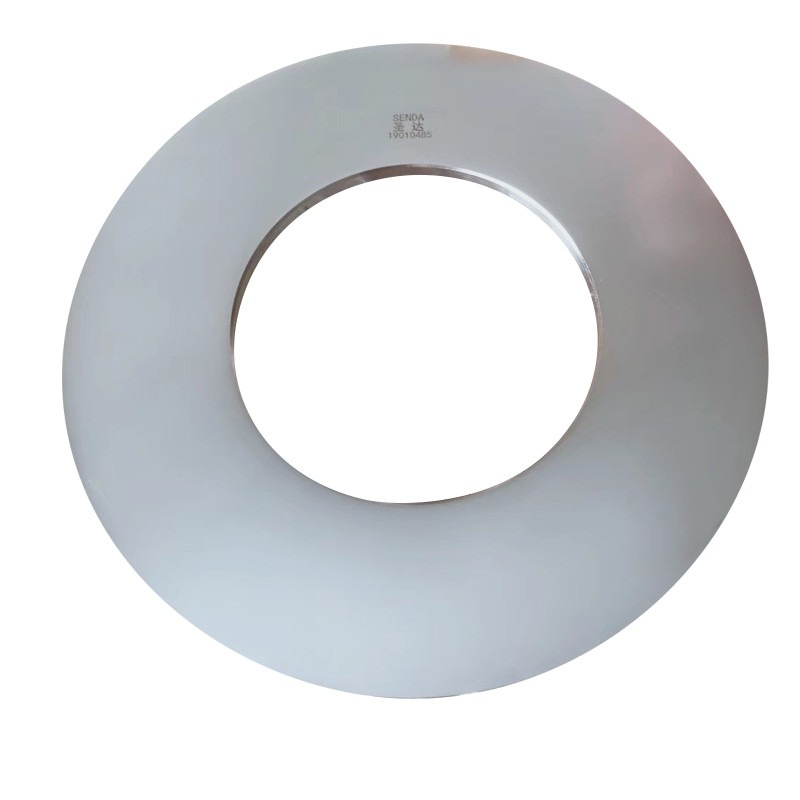

KL-56 Material slitter machine rolling shear blades for tinplate coating line



Senda rolling shear blades for tinplate coating line used with flying shear blade for cutting hot rolling coil metal sheets, cold milling coil sheets etc. with fixing 4pcs of rolling shear knives which are equipped by 2pcs on each side respectively and they are used for cutting the ends of both sheets: able to cut 0.2~3.2mm sheets for cold milling plates and cut 1.0~12.7mm sheet for hot milling plates. KL-56 material can handle high strength sheets.



Brand: Senda

Country of Origin: China

Material: KL-56

Size: Customized

Thickness tolerance: +- 0.001mm

Inner Diameter: + 0.02mm

Flatness: ≤ 0.002mm

Parallelism: ≤ 0.002mm

Concentricity: ≤ 0.02mm

Surface roundness : Ra 0.1um

Hardness: Tool steel: HRC58~~61

Packaging: wooden box with anti-rust film inside

Application:  electrolytic tinplate coating line





Hrc58 ISO9001 Circle Blade Knife For Metal Sheet Slitting 0





Hrc58 ISO9001 Circle Blade Knife For Metal Sheet Slitting 1



Besides providing the high precision rotary slitting tools, we can provide corresponding services:
1. Design the slitting lines to meet the requirements of slitting system
2. Check and solve questions when happened during working
3. Adjust the gap between the top and bottom knives
4. Regrinding the slitting tools



Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
