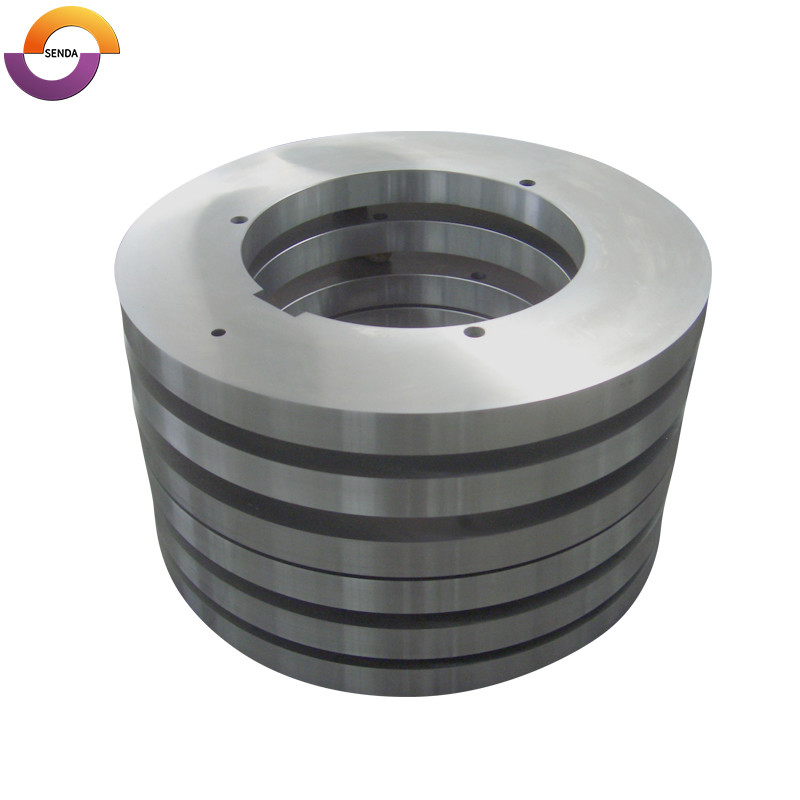

SKD11 Circular Rotary Slitter Shear Blades Coil Hot Rolling Mill Plants

2pcs
MOQ
SKD11 Circular Rotary Slitter Shear Blades Coil Hot Rolling Mill Plants
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Metal Slitter Knives
Other Name: Coil Slitter Blade, Rotary Shear Blades
Material: SKD11,D2, Cr12MoV
Thickness Tolerance: +-0.001mm
Inner Diameter: +0.02mm
Flatness: ≤0.002mm
Parallelism: ≤0.002mm
Concentricity: ≤0.02mm
Surface Roundness: Ra0.1um
Hardness: Tool Steel: HRC62~64
Application: Hot Rolling Mill Plants
Highlight:

coil slitter blade

,

SKD11 Slitter Blades

,

Rotary Slitter Shear Blades

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Model Number: SD004
Payment & Shipping Terms
Packaging Details: use anti-rust oil in plastuc bag and Packed in strong plywood case
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Description



Features:

Rotary Slitter Blades
Categories
China(GB/T YB)
Euro(DIN/BS/NF)
American(AISI)
Japan(JIS)
ISO
Alloy

Tool

Steel
9CrSi
6CrW2Si
50WCrV8
Cr12Mo1V1
1.2379
D2
SKD 11
X153CrMoV12
Cr12MoV
4Cr5MoVSi
1.2343
H11



SKD6
X37CrMoV5-1
4Cr5W2VSi
1.2606
H12
SKD62
4Cr5MoV1Si
1.2344
H13
SKD 61
X35CrMoV5-1
High
Speed
Tool
Steel
W18Cr4V
1.3355
T1
SKH2
HS18-0-1
W6Mo5Cr4V2
1.3341/1.3343
M2
SKH51
HS6-5-2
W6Mo5Cr4V3
1.3344
M3
SKH53
HS6-5-3
W6Mo5Cr4V2Co5
1.3243/1.3245
M35
SKH55
HS6-5-2-5



SENDA slitter knives are manufactured using state of the art materials and the latest technology and production techniques. SENDA slitter knives are used to cut a wide variety of materials from 0.0003″ foil to greater than 2″ thickness. We offer the best-suited and successful grades for slitting and shearing HSLA, AHSLA, Duplex©, stainless steels, nickel alloys, copper, brass, titanium, indium aluminum, hot rolled steels, phosph, bronze, clad, and laminated metals.





Available in D2,D3,HSS,H11,H13, KL-56
Used for Slitting & trimming mild steel,CRGO,CRNGO,Stainless Steel,Aluminium,Brass & Copper
Sharp,uniform shearing edge after regrinding.
High productivity & low downtime.
Thickness tolerance 0.0015mm ; Flatness tolerance 0.001mm (depends on OD & thickness)
Lapping for finish upto 0.2 Ra
Manufacture up to 600mm OD
Optimum hardness for wear resistance
Cutting capacity range: 0.1mm to 24mm thick strip
Surface finish: ground, lapped and polished.





SKD11 Circular Rotary Slitter Shear Blades Coil Hot Rolling Mill Plants 0



SKD11 Circular Rotary Slitter Shear Blades Coil Hot Rolling Mill Plants 1



KNIVES FOR METAL

Knives for hot mills

Knives for cold rolling mills

Knives for tube and pipe mills

Tubes for profile and pipe production

Knives for steel centers

Knives for non-ferrous alloys

Knives for processing lines

Knives for metal scrap recycling and demolition

Wear and spare parts



Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
