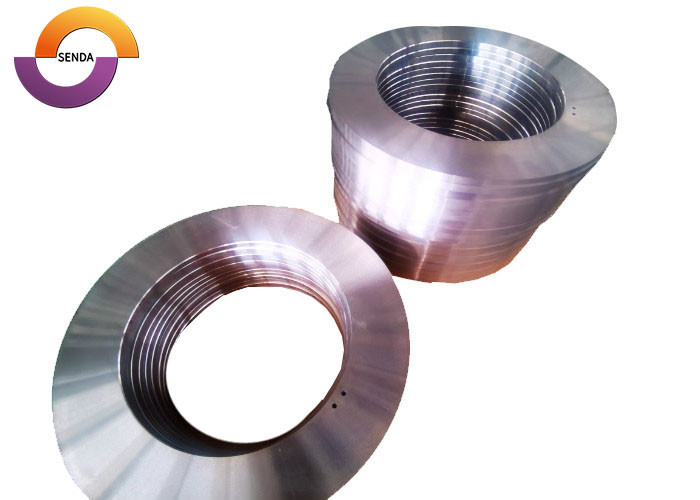

Metal Round HRC55 Rotary Slitter Blades Cr12MoV For Coil Slitting Line

2pcs
MOQ
Metal Round HRC55 Rotary Slitter Blades Cr12MoV For Coil Slitting Line
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Rotary Mirror Slitter Knives
Trademark: OEM
Material: SKD11,D2, M2, Cr12MoV, LD Etc
Thickness Tolerance: +-0.001mm
Inner Diameter: +0.02mm
Flatness: ≤0.002mm
Parallelism: ≤0.002mm
Concentricity: ≤0.02mm
Surface Roundness: Ra0.1um
Hardness: HRC55~57
Highlight:

metal round Rotary Slitter Blades

,

Cr12MoV Rotary Slitter Blades

,

Round HRC55 Rotary Slitter Blades

Basic Infomation
Place of Origin: China
Brand Name: SENDA
Certification: ISO9001
Model Number: SD004
Payment & Shipping Terms
Packaging Details: anti-rust oil in plastic bag, Packed in strong plywood case
Delivery Time: 35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description



Product range:

Rolling cutting type bilateral shear fixed-length shear

Hot rolled cutting head cutting tail shears

Edge cutting disc scissors
broken shearing

shear welding machine
crescent cut

flying shear





Senda Circular Slitting Blades are available in adifferent grades of proprietary steel(carbon steel, copper, stainless steel, aluminum etc) to meet various needs. In order to accommodate many types of target materials from ordinary steel coils to high-tensile steel coils, SUS steel, electromagnetic steel and non-ferrous metals etc,  we consider the specifications and select the material with best hardness, precision, and surface treatment to meet customer expectations. To improve the lubricity of slitter knives, we can do mirror slitter knives featuring a surface roughness of Ra 0.1um.





Brand: Senda

Country of Origin: China

Material: SKD11,D2, M2, Cr12MoV, LD

Size: Customized

Thickness tolerance: +- 0.001mm

Inner Diameter: + 0.02mm

Flatness: ≤ 0.002mm

Parallelism: ≤ 0.002mm

Concentricity: ≤ 0.02mm

Surface roundness : Ra 0.1um

Hardness: Tool steel: HRC55~~57

Packaging: wooden box with anti-rust film inside

Application: Tinning Lines



Metal Round HRC55 Rotary Slitter Blades Cr12MoV For Coil Slitting Line 0



Metal Round HRC55 Rotary Slitter Blades Cr12MoV For Coil Slitting Line 1



Metal Round HRC55 Rotary Slitter Blades Cr12MoV For Coil Slitting Line 2





Our Services:
Besides providing the high precision rotary slitting tools, we can provide corresponding services:
1. Design the slitting blades to meet the requirements of slitting system
2. Check and solve questions when happened during slitting
3. Regrinding the slitting tools



Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
