Materials
|
Alloy, Heat-resisting high alloy steel , D2 ,H13 and etc
|
|
OEM & ODM
|
Provided
|
|
Merits
|
High toughness,High wear resistance
|
|
Size
|
Custom
|
|
Surface Finish
|
Ra0.4 or less
|
|
Package
|
Plywood case
|
|
Parallelism
|
0.002mm
|
|
Thickness tolerance
|
±0.002mm
|

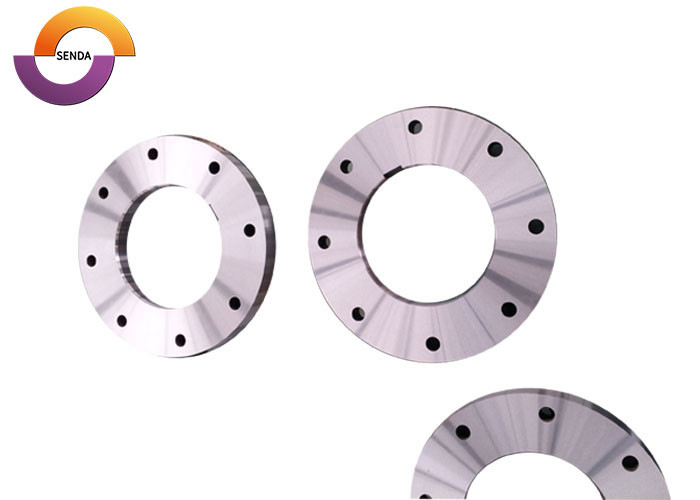

Senda rolling shear blades for tinplate coating line used with flying shear blade for cutting hot rolling coil metal sheets, cold milling coil sheets etc. with fixing 4pcs of rolling shear knives which are equipped by 2pcs on each side respectively and they are used for cutting the ends of both sheets: able to cut 0.2~3.2mm sheets for cold milling plates and cut 1.0~12.7mm sheet for hot milling plates. KL-56 material can handle high strength sheets.
Brand: Senda
Country of Origin: China
Material: KL-56
Size: Customized
Thickness tolerance: +- 0.001mm
Inner Diameter: + 0.02mm
Flatness: ≤ 0.002mm
Parallelism: ≤ 0.002mm
Concentricity: ≤ 0.02mm
Surface roundness : Ra 0.1um
Hardness: Tool steel: HRC58~~61
Packaging: wooden box with anti-rust film inside
Application: electrolytic tinplate coating line
Besides providing the high precision rotary slitting tools, we can provide corresponding services:
1. Design the slitting lines to meet the requirements of slitting system
2. Check and solve questions when happened during working
3. Adjust the gap between the top and bottom knives
4. Regrinding the slitting tools
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
